你画我猜简易版实现
大约 3 分钟
你画我猜简易版实现
目录

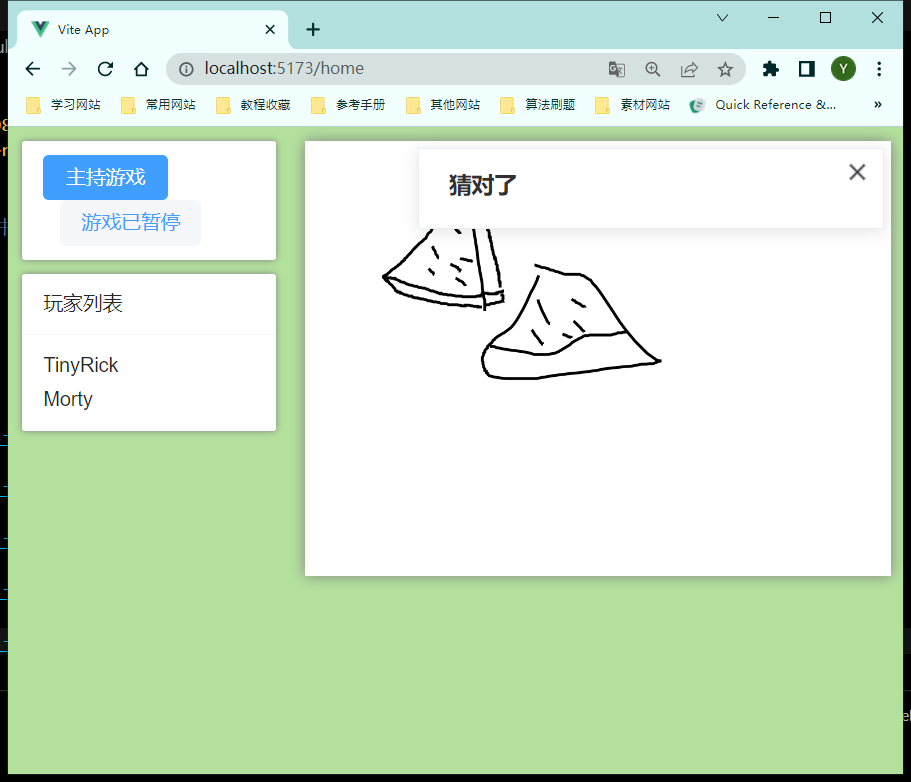

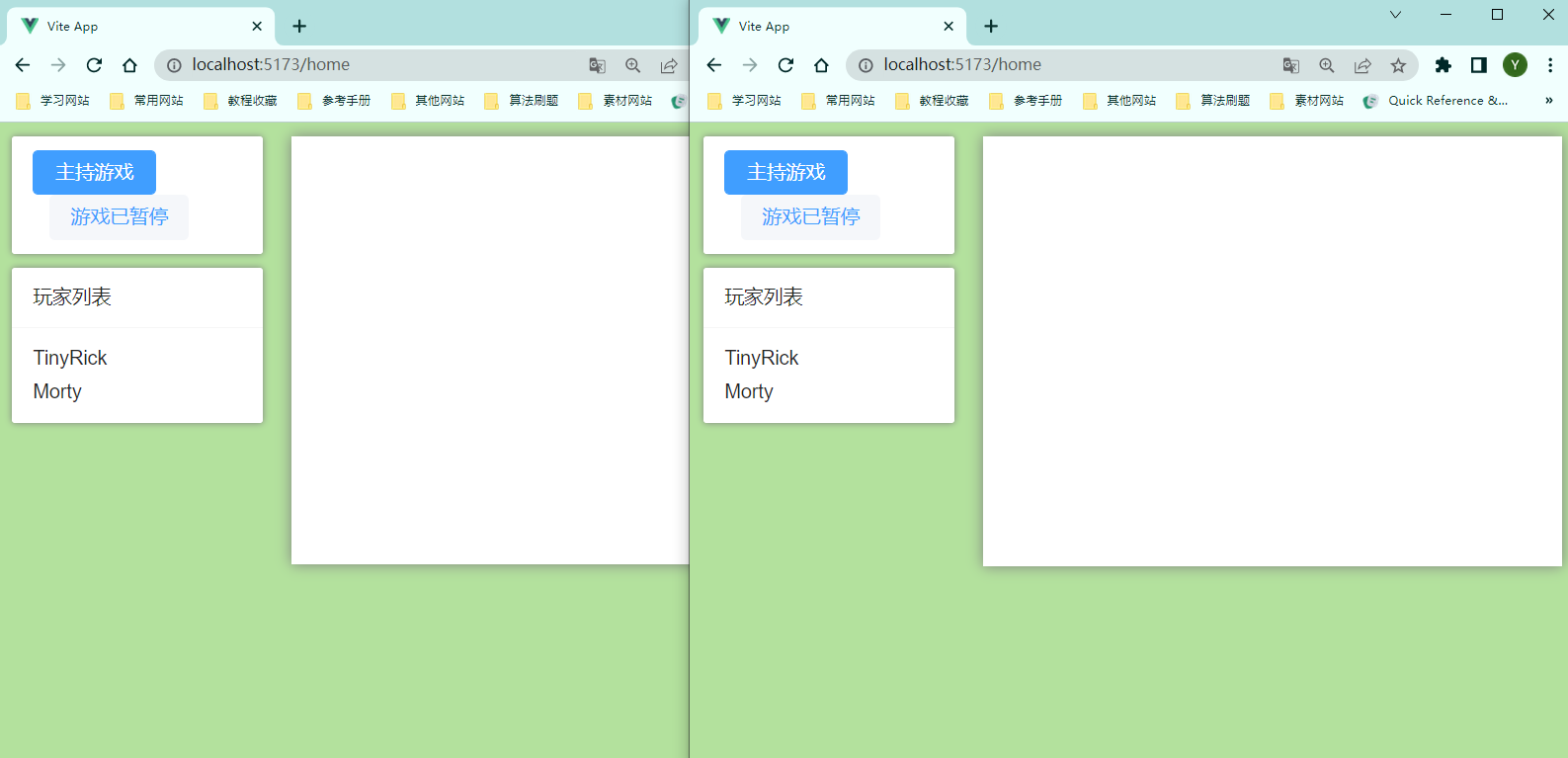

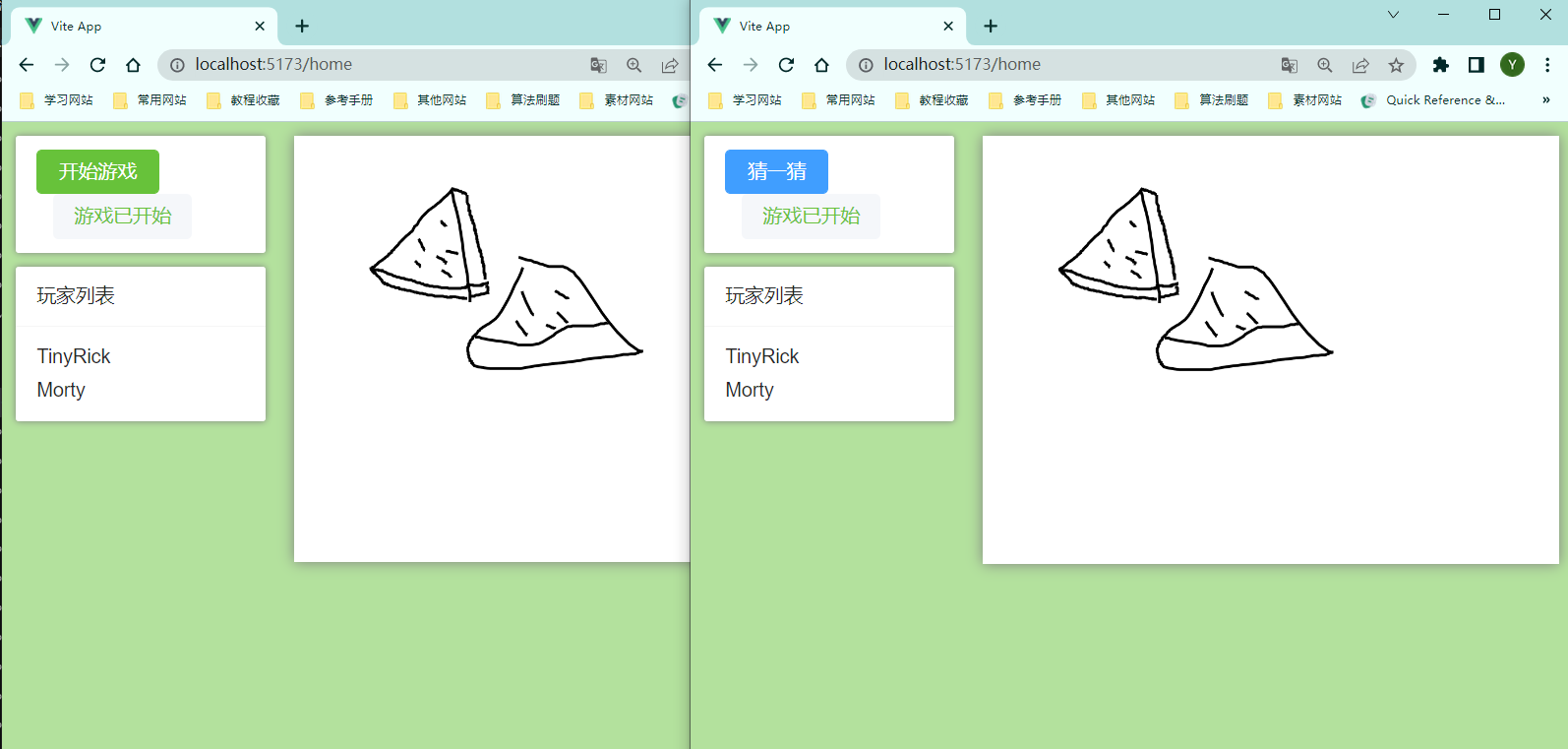

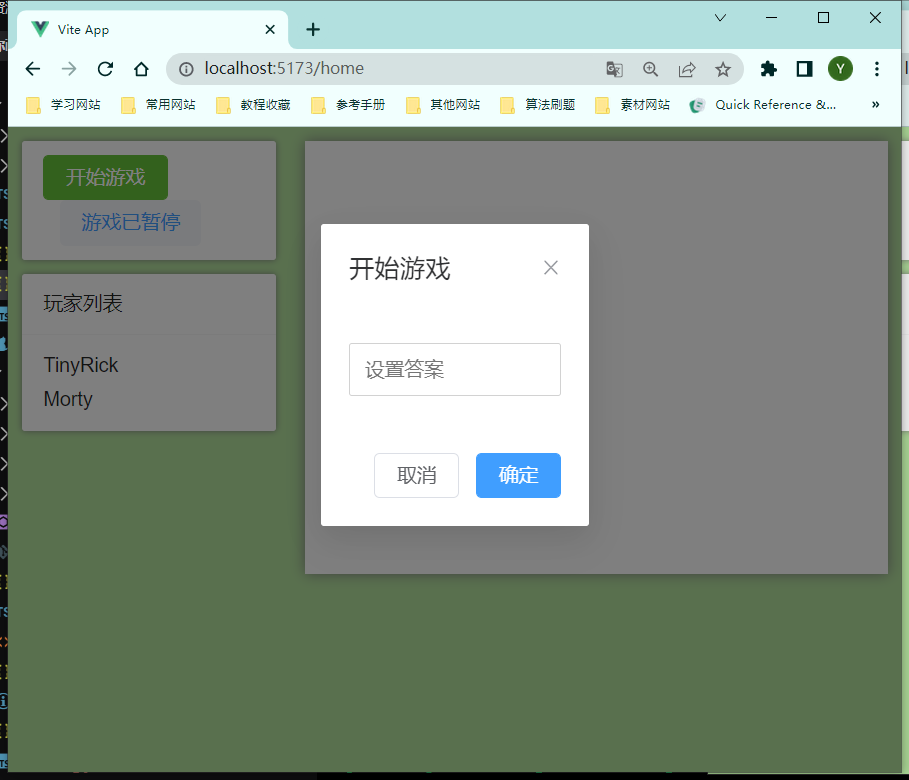

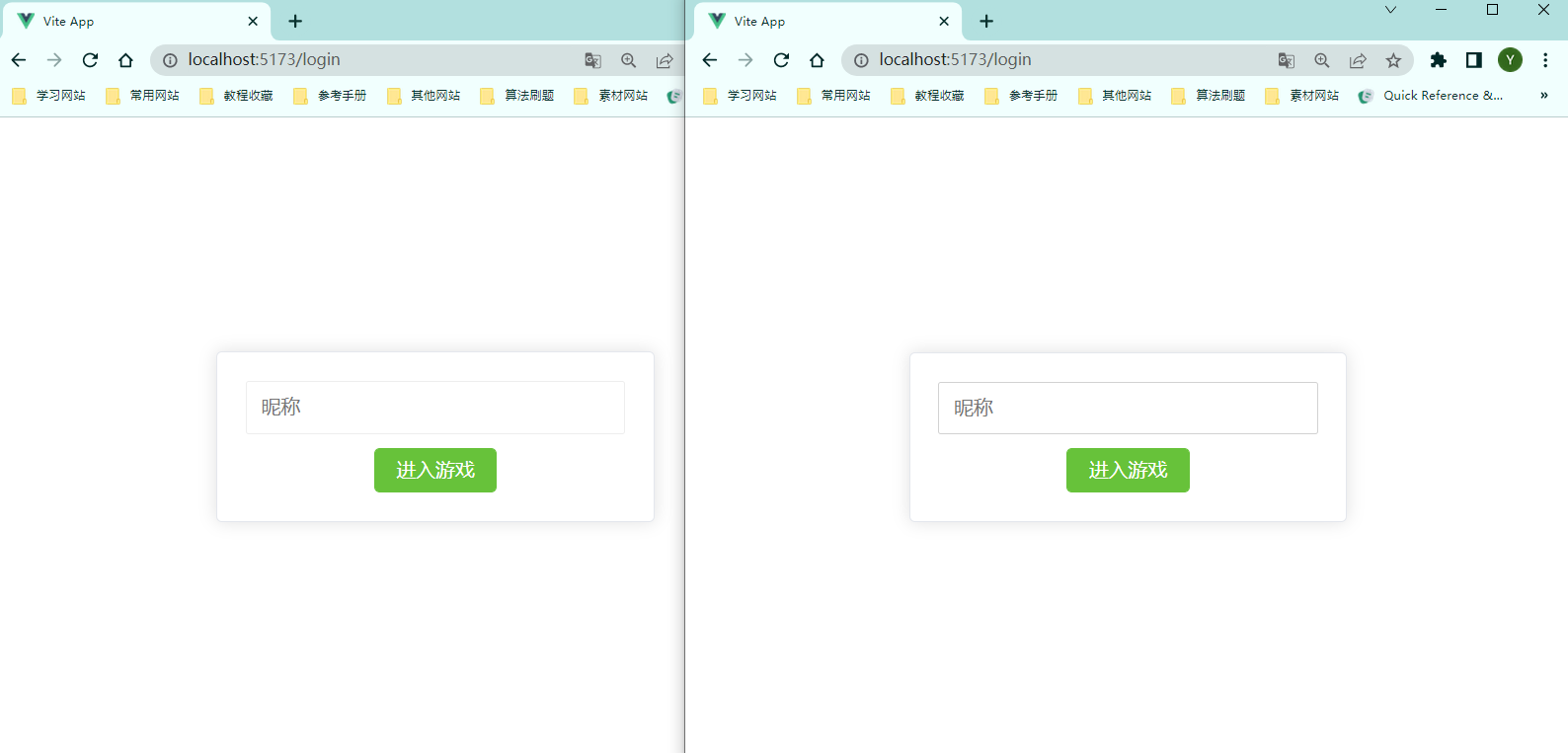

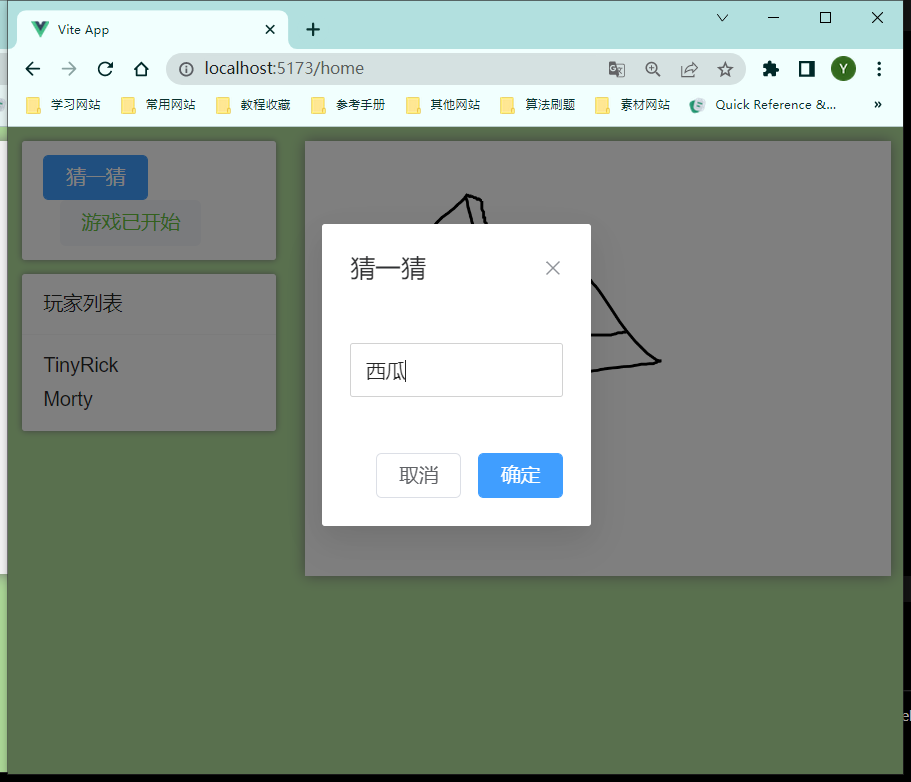

实现效果记录
服务端可复用代码
import path from "path";
import createExpress, { static as _static } from "express";
import http from "http";
import { Server } from "socket.io";
import { GameServer } from "./GameServer.js";
const express = createExpress();
const httpServer = http.createServer(express);
const socketServer = new Server(httpServer);
const gameServer = new GameServer(socketServer); //游戏服务器,接收一个socket服务器
express.use(_static(path.resolve(__dirname, "../dist/"))); // 静态页面
gameServer.run(); // 游戏服务器
httpServer.listen(3000, () => {
console.log("listening on *:3000");
});
客户端部分代码实现
import { Whiteboard } from "@/Whiteboard";
import type { Socket } from "socket.io-client";
export class GameClient implements Observable {
connect = false;
username = "";
usernames: Array<string> = [];
isRunning: boolean = false;
lines: any[] = [];
line_buffer: any;
master: string | undefined;
isMaster: boolean;
whiteboard: Whiteboard = new Whiteboard();
constructor(private socket: Socket) {
this.socket = socket;
}
async update() {
this.usernames = await this.reqGetUserList();
this.isRunning = await this.reqGetGameState();
this.lines = await this.reqGetLines();
this.master = await this.reqGetMaster();
if (this.username == this.master) this.isMaster = true;
else this.isMaster = false;
this.whiteboard.afterUpdate = () => {
if (this.isRunning && this.isMaster) {
this.lines = this.whiteboard.lines;
this.line_buffer = this.whiteboard.lineBuffer;
this.updateLines([...this.lines, this.line_buffer]);
} else {
this.whiteboard.lines = this.lines;
}
};
}
async becomeMaster() {
return await this.reqBecomeMaster();
}
async startGame(answer: string) {
return await this.reqStartGame(answer);
}
async updateLines(lines: any[]) {
return await this.reqUpdateLines(lines);
}
async guessAnswer(answer: string) {
return await this.reqGuessAnswer(answer);
}
public async login(username: string): Promise<boolean> {
if (await this.reqLogin(username)) {
this.username = username;
this.Notify();
return true;
}
return false;
}
public async logout(): Promise<boolean> {
if (await this.reqLogout()) {
this.username = "";
this.Notify();
return true;
}
return false;
}
public async isLogin(): Promise<boolean> {
if (await this.reqIsLogin()) {
return true;
}
return false;
}
// 更新数据
private async reqGetUserList(): Promise<typeof this.usernames> {
return new Promise((resolve) => {
this.socket.emit("getUserList", (result: Array<string>) => {
resolve(result);
});
});
}
private async reqGetGameState(): Promise<boolean> {
return new Promise((resolve) => {
this.socket.emit("getGameState", (result: boolean) => {
resolve(result);
});
});
}
private async reqGetLines(): Promise<Array<any>> {
return new Promise((resolve) => {
this.socket.emit("getLines", (result: Array<any>) => {
resolve(result);
});
});
}
private async reqGetMaster(): Promise<string> {
return new Promise((resolve) => {
this.socket.emit("getMaster", (result: string) => {
resolve(result);
});
});
}
private async reqBecomeMaster() {
return new Promise((resolve) => {
this.socket.emit("becomeMaster", (result: boolean) => {
resolve(result);
});
});
}
private async reqStartGame(answer: string) {
return new Promise((resolve) => {
this.socket.emit("startGame", answer, (result: string) => {
resolve(result);
});
});
}
private async reqUpdateLines(lines: any[]) {
return new Promise((resolve) => {
this.socket.emit("updateLines", lines, (result: string) => {
resolve(result);
});
});
}
private async reqGuessAnswer(answer: string) {
return new Promise((resolve) => {
this.socket.emit("guessAnswer", answer, (result: string) => {
resolve(result);
});
});
}
private async reqLogin(username: string): Promise<boolean> {
return new Promise((resolve) => {
this.socket.emit("login", username, (result: boolean) => {
resolve(result);
});
});
}
private async reqLogout(): Promise<boolean> {
return new Promise((resolve) => {
this.socket.emit("logout", (result: boolean) => {
resolve(result);
});
});
}
private async reqIsLogin(): Promise<boolean> {
return new Promise((resolve) => {
this.socket.emit("isLogin", (result: boolean) => {
resolve(result);
});
});
}
isConnect() {
return this.connect;
}
setConnect(newVal: boolean) {
this.connect = newVal;
this.Notify();
}
run() {
this.socket.on("connect", () => {
console.log("game:connect");
this.setConnect(true);
});
this.socket.on("disconnect", () => {
this.setConnect(false);
});
this.socket.on("update", () => {
this.update();
});
}
observers: Observer[] = [];
Attach(observer: Observer): void {
if (this.observers.includes(observer)) return;
this.observers.push(observer);
}
Detach(observer: Observer): void {
if (this.observers.includes(observer)) {
this.observers.splice(this.observers.indexOf(observer), 1);
}
}
Notify(): void {
this.observers.forEach((item) => item.update());
}
}
// 设计模式观察者模式
// 观察者
interface Observer {
update(): void;
}
// 可观察对象
interface Observable {
observers: Array<Observer>; // 观察者
Attach(observer: Observer): void; // 附加观察者
Detach(observer: Observer): void; // 分离观察者
Notify(): void; // 通知观察者
}
画板的实现
type LineInfo = {
strokeStyle: string;
lineWidth: number;
points: Array<number>;
};
export class Whiteboard {
fillStyle = "black";
pencilSize = 10;
canvas!: HTMLCanvasElement;
ctx!: CanvasRenderingContext2D;
CANVAS_W = 1024;
CANVAS_H = 760;
lines: LineInfo[] = [];
lineBuffer: LineInfo = {
strokeStyle: "",
lineWidth: 0,
points: [],
};
afterUpdate = () => {};
mouseInput!: InputListener;
constructor(canvasId?: string) {
if (canvasId) this.init(canvasId);
}
init(canvasId: string) {
this.canvas = document.getElementById(canvasId) as HTMLCanvasElement;
this.ctx = this.canvas.getContext("2d") as CanvasRenderingContext2D;
this.canvas.width = this.CANVAS_W;
this.canvas.height = this.CANVAS_H;
this.mouseInput = new InputListener(canvasId);
return this;
}
update() {
while (this.mouseInput.inputs.length != 0) {
this.lines.push(this.mouseInput.inputs.shift());
}
this.lineBuffer = Object.assign({}, this.mouseInput.input_buffer);
this.afterUpdate();
}
drawLines(graphs: LineInfo[]) {
graphs.forEach((graph) => {
if (graph.points.length <= 2) return;
this.ctx.beginPath();
this.ctx.moveTo(graph.points[0], graph.points[1]);
for (let index = 2; index < graph.points.length; ) {
const pointX = graph.points[index++];
const pointY = graph.points[index++];
this.ctx.lineTo(pointX, pointY);
}
this.ctx.lineWidth = graph.lineWidth;
this.ctx.strokeStyle = graph.strokeStyle;
this.ctx.stroke();
});
}
draw(interval: number) {
this.ctx.clearRect(0, 0, this.CANVAS_W, this.CANVAS_H);
this.drawLines(this.lines);
this.drawLines([this.lineBuffer]);
}
refresh(interval: number) {
this.update();
this.draw(interval);
}
start() {
let last = 0;
let animate = (current: number) => {
this.refresh(current - last);
last = current;
requestAnimationFrame(animate);
};
animate(0);
}
}
class InputListener {
inputs: LineInfo[] = [];
input_buffer: LineInfo = {
strokeStyle: "black",
lineWidth: 5,
points: [],
};
target: HTMLElement;
constructor(targetId: string) {
this.target = document.getElementById(targetId) as HTMLElement;
this.listening_pc();
// this.listening_mobile()
}
listening_pc() {
let mousedown = false;
this.target.addEventListener("mousedown", () => {
mousedown = true;
});
this.target.addEventListener("mousemove", (e) => {
if (!mousedown) return;
this.input_buffer.points.push(e.offsetX);
this.input_buffer.points.push(e.offsetY);
});
this.target.addEventListener("mouseup", () => {
mousedown = false;
this.inputs.push(Object.assign({}, this.input_buffer));
this.input_buffer.points = [];
});
}
// listening_mobile() {
// let touched = false;
// this.target.addEventListener("touchstart", () => {
// touched = true;
// })
// this.target.addEventListener("touchmove", (e) => {
// if (!touched) return
// this.inputs.push({ x: e.targetTouches[0].clientX, y: e.targetTouches[0].clientY })
// })
// this.target.addEventListener("touchend", () => {
// touched = false;
// })
// }
}
