06.实现LowPassFilter对传感器数据滤波

06.实现LowPassFilter对传感器数据滤波

具体实现

LowPassFilter.hpp

#ifndef _LowPassFilter_H_
#define _LowPassFilter_H_
#include "Timer.hpp"
class LowPassFilter : Timer
{
private:
    uint16_t Tms;
    int32_t pre_value;

public:
    LowPassFilter(uint16_t Tms)
    {
        this->Tms = Tms;
    }
    int32_t operator()(int32_t value)
    {
        uint16_t dt_ms = this->dt_ms();
        uint8_t k = UINT8_MAX * (uint32_t)dt_ms / (Tms + dt_ms);
        int32_t out = (k * value + (UINT8_MAX - k) * pre_value) / UINT8_MAX;
        return pre_value = out;
    }
};

#endif

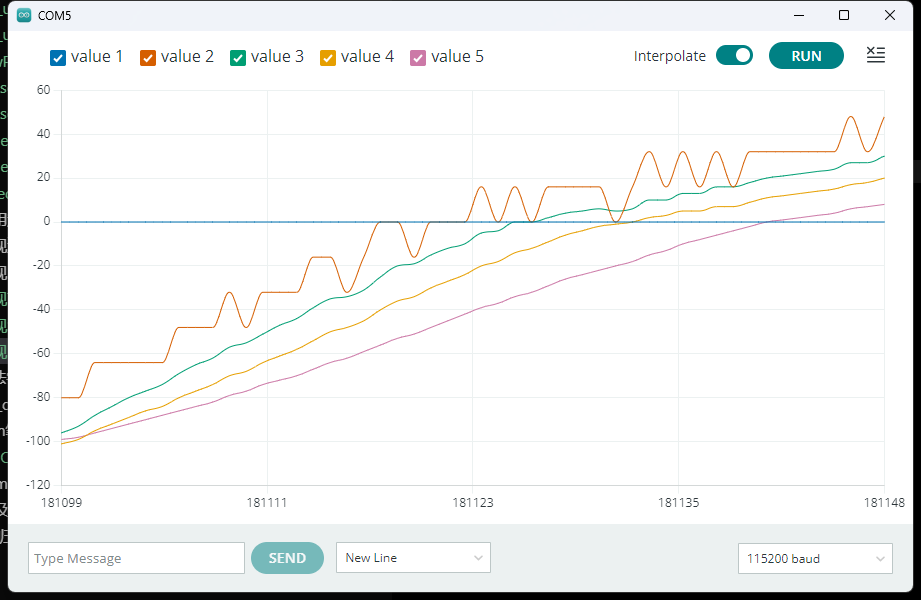

实现效果

06.filter.ino

#include <Arduino.h>
#include <Wire.h>
#include "BLDCMotor.hpp"
#include "BLDCDriver.hpp"
#include "Sensor.hpp"
#include "foc_utils.h"
#include "typedef.h"

#define AS5600
// #define AS5047P

#ifdef AS5600

#define AS5600_ADDR 0x36
#define AS5600_RAW_ANGLE 0x0c
#define AS5600_ANGLE 0x0e

#elif defined AS5047P

#include <AS5047P.h>
#define AS5047P_CHIP_SELECT_PORT 9
#define AS5047P_CUSTOM_SPI_BUS_SPEED 100000
AS5047P as5047p = AS5047P(AS5047P_CHIP_SELECT_PORT, AS5047P_CUSTOM_SPI_BUS_SPEED);

#endif

Sensor *sensor = new Sensor(
#ifdef AS5600
    []()
    {
      Wire.begin();
    },
    []()
    {
      Wire.beginTransmission(AS5600_ADDR);
      Wire.write(AS5600_ANGLE);
      Wire.endTransmission(false);
      Wire.requestFrom(AS5600_ADDR, 2);
      uint16_t data = 0;
      *((uint8_t *)&data + 1) = Wire.read();
      *((uint8_t *)&data + 0) = Wire.read();
      Wire.endTransmission(true);
      // as5600 12bit精度，左移4位变成16位
      data <<= 4;
      return data;
    }
#elif defined AS5047P
    []()
    {
      pinMode(AS5047P_CHIP_SELECT_PORT, OUTPUT);
      as5047p.initSPI();
    },
    []()
    {
      digitalWrite(AS5047P_CHIP_SELECT_PORT, HIGH);
      // 14bit精度 左移2位变成16位
      uint16_t data = as5047p.readAngleRaw() << 2;
      digitalWrite(AS5047P_CHIP_SELECT_PORT, LOW);
      return data;
    }
#endif
);

#include "LowPassFilter.hpp"
LowPassFilter filter1 = LowPassFilter(5);
LowPassFilter filter2 = LowPassFilter(10);
LowPassFilter filter3 = LowPassFilter(20);

void setup()
{
  Serial.begin(115200);
  sensor->initSensor();
}

void loop()
{
  sensor->update();
  Serial.print(0);
  Serial.print(',');
  Serial.print(sensor->getVelocity());
  Serial.print(',');
  Serial.print(filter1(sensor->getVelocity()));
  Serial.print(',');
  Serial.print(filter2(sensor->getVelocity()));
  Serial.print(',');
  Serial.print(filter3(sensor->getVelocity()));
  Serial.print('\n');
}
